In stock

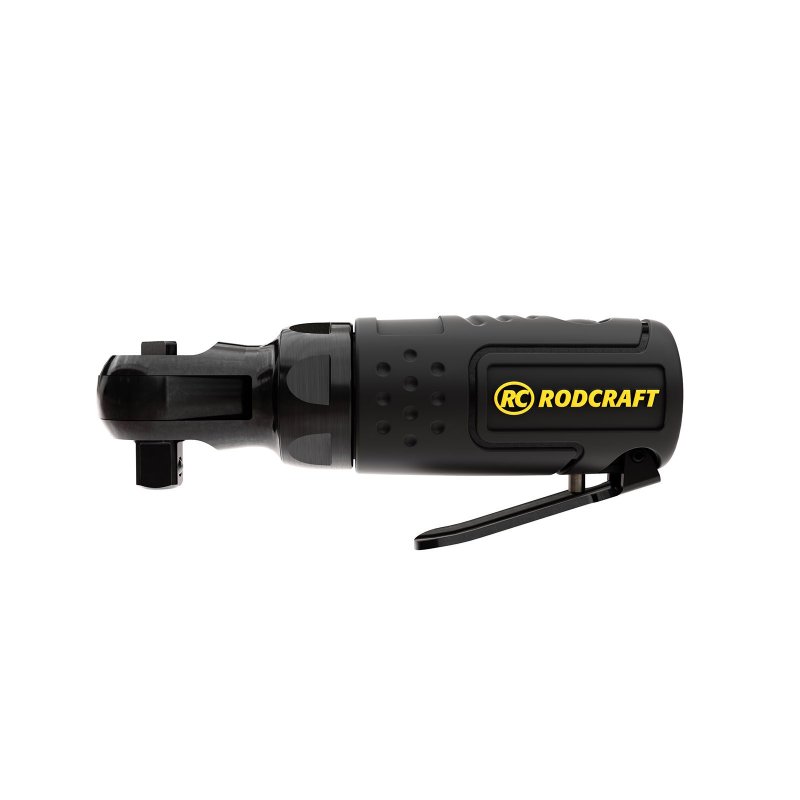

RC3201 3/8" Mini Ratchet

Model: 8951000433

The RC3201, RC3202 and RC3203 are the perfect and powerful mini air pressure ratchets 3/8" with and without multi-function drive or with impact mechanism Technical Specifications Metric Specs Design & Functions Output drive ...

£118.59 inc VAT £98.83 exc VAT

Qty:

Manufacturer
Rodcraft

Model
8951000433

Description:

The RC3201, RC3202 and RC3203 are the perfect and powerful mini air pressure ratchets 3/8" with and without multi-function drive or with impact mechanism

Technical Specifications

Metric Specs

Design & Functions

Output drive type Square

Starting system Safety lever

Output retainer type Ball detent

Output drive size (in) 3/8

Torque

Max torque reverse 50 Nm

Size & Weight

Min hose diam (5 m hose length) 10 mm

Length (L) 135 mm

Height (H) 37 mm

Weight 0.46 kg

Width (W) 57 mm

Speed

Free Speed 300 rpm

Air consumption at free speed 1 l/s

Material

Main Material type Composite

Noise & vibrations

Uncertainty vibration-K 5.1 m/s²

Vibration 8.5 m/s²

Sound Pressure 83 dB(A)

Sound Power 94 dB(A)

Air information

Max dynamic air working pressure 6.3 bar

Air inlet thread type BSP

Air inlet thread size (in) 1/4
