In stock

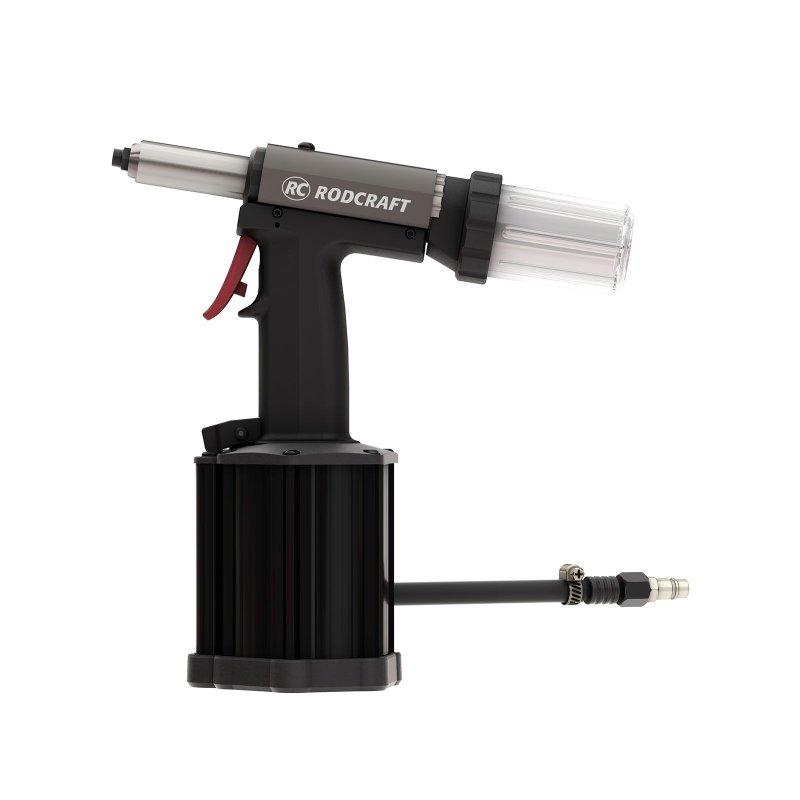

RC6738 Small Riveter

Model: 8951000408

The RC6700/RC6738/RC6748 series rivet setters for blind rivets are suitable for blind and structural rivets of all common materials and sizes Technical Specifications Metric Specs Design & Functions Min rivet size (mm) 3.2 ...

£303.02 inc VAT £252.52 exc VAT

Qty:

Manufacturer
Rodcraft

Model
8951000408

Description:

The RC6700/RC6738/RC6748 series rivet setters for blind rivets are suitable for blind and structural rivets of all common materials and sizes

Technical Specifications

Metric Specs

Design & Functions

Min rivet size (mm) 3.2

Max rivet size (mm) 5.0

Mouthpiece delivered 3

Rivet type Blind

Starting system Trigger

Size & Weight

Height (H) 115 mm

Length (L) 277 mm

Weight 1.7 kg

Min hose diam (5 m hose length) 10 mm

Width (W) 290 mm

Material

Main Material type Aluminum, Composite over-sleeve

Noise & vibrations

Vibration 2.5 m/s²

Sound Pressure 77.8 dB(A)

Sound Power 88.8 dB(A)

Uncertainty vibration-K 0.6 m/s²

Air information

Air consumption at load 4 l/s

Max dynamic air working pressure 6.3 bar

Air inlet thread size (in) 1/4

Air inlet thread type BSP
